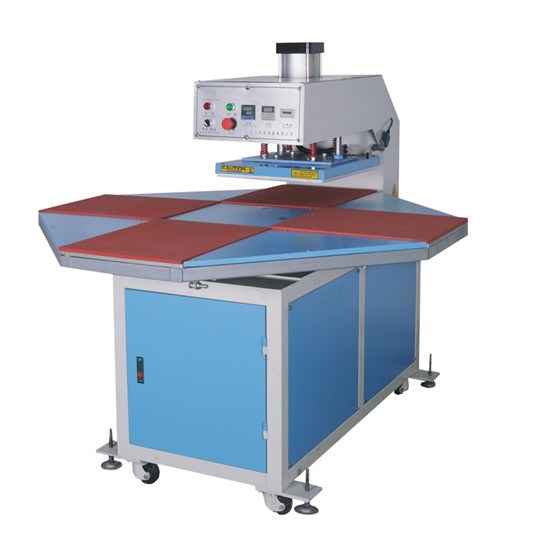

Automatic Four-Stations
Heat Press Machine
Model
No.: SDD-04
Feature:
1, Automatic air
operated pressing and moving of heating board, large pressure and easy to
control.
2, Using digital
microprocessor control program, parameter memory, exact precision, touch
control panel.
3, Round four
stations design, very suitable for mass production.
4, Electronic digital
time and temperature control with high accuracy. Digital Counter count the
pressing number.
5, The heated thread
and heated board are built together, safe, durable, distribute uniformity.
6, The heating board
is made of aluminium, with teflon coated on the surface of upper heating board,
beautiful and convenient, no need to use teflon sheet.
7, The silicon pad
can endure MAX 350℃, without any distortion.
Specification:
|
Voltage
|
110V &
220V
|
|
Power
|
2800w
|
3000w
|
3500w
|
|
Temperature Range
|
0~399°C
|
|
Time Range
|
0~999 second
|
|
Working Size
|
40*40 cm
|
40*50 cm
|
40*60 cm
|
|
Packing
|
Export Wooden Packing
|
|
Packing Size
|
145*70*146 cm
|
155*70*146 cm
|
165*70*146
|
|
Gross Weight
|
180kg
|
190kg
|
200kg
|
